LAYPLAN CAD

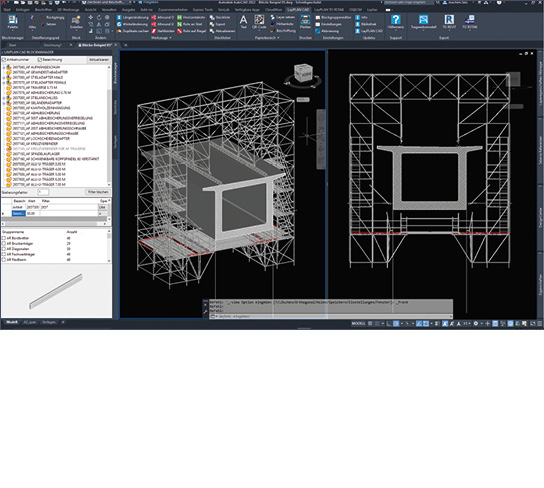

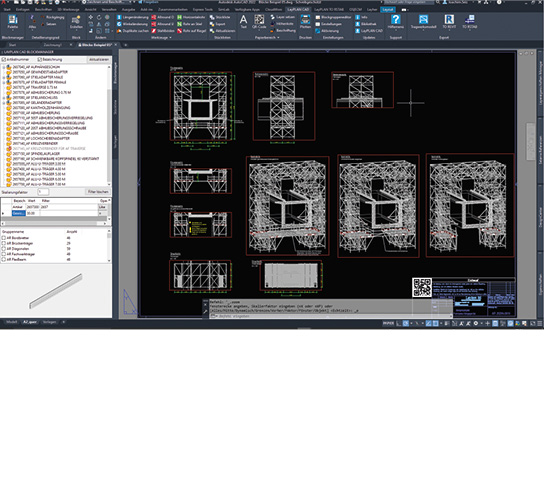

LayPLAN CAD is a plug-in for Autodesk AutoCAD, which is available for individual scaffolding planning. It permits 3-dimensional planning of all types of scaffolding structures, irrespective of their complexity. Alongside the extensive component library, it provides scaffolding planners with design functions for the simple, fast insertion of components. A transfer to visualisation or animation software is also possible without any problem. This allows projects not only to be planned economically and at the same time adapted precisely to actual requirements, but also to be presented professionally to customers.

Added value of LayPLAN CAD

  • Scaffolding planning and design in 3D.
  • Basic planning can be done in an automated process using LayPLAN CLASSIC – thus saving time.
  • Visual conflict checks through realistic rendering.
  • Extensive component library with a convenient search function – including prefabricated assemblies and template drawings for even faster design.
  • Component preview.
  • Automatic component identifications.
  • Real-time material list for transport and assembly.
  • Further editing of the model data in visualisation software (e.g. rendering, VR) for order acquisition and for coordination with other trades, for conflict checking or for construction sequence simulation.
  • Further editing of the model data in frame analysis programs for structural strength calculations as part of project-related verifications of stability. Unlike in the remodelling which is otherwise necessary, this avoids sources of error and saves time when planning. For further information, see LayPLAN TO RSTAB.
  • Using LayPLAN TO REVIT, it is possible to transfer data to Revit for exchange with other project participants such as construction companies, architects, etc. Export as an IFC file is also possible in this way.
Target group and usage
  • Scaffolding erectors.
  • Construction companies.
  • Event engineers.
  • Engineering and planning offices.
  • In both the offer and implementation phases.
  • Prior knowledge of AutoCAD and a good feel for IT are an advantage.
System requirements
  • CAD system: AutoCAD, AutoCAD Mechanical, AutoCAD Architecture Versions 2017 – 2022
  • Operating system: Windows 7, Windows 10, Windows 11
  • Processor: High-speed processor, e.g. > 3.0 GHz
  • RAM: Recommended 16 GB, 32 GB is optimal
  • Graphics card: Recommended: 4 GB GPU with 106 Gbit/s and compatible with DirectX 11, e.g. NVIDIA Quadro P2200 with 5GB GDDR5X, max. 140GB/s
  • Hard drive: Recommended total capacity: 512 GB, SSD if possible
