LayPLAN TO RSTAB

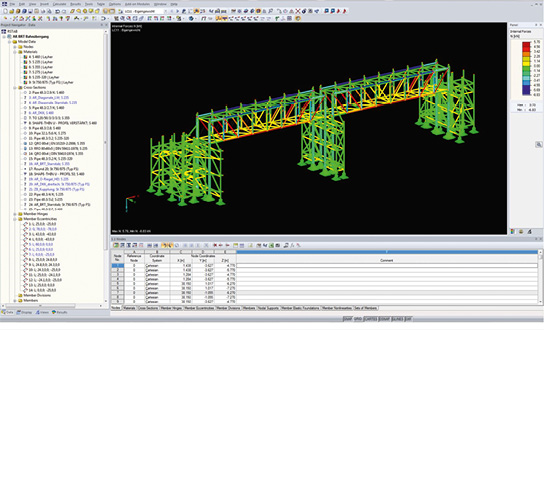

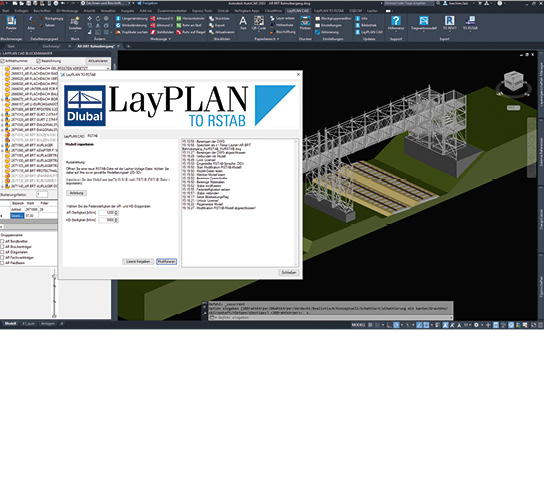

Frame analysis programs are generally used for the structural strength verification of scaffolding structures. Using the LayPLAN TO RSTAB module, all modellingrelevant information about an Allround Scaffolding structure can be imported in 3D form into the RSTAB frame analysis program from Dlubal with all structurally relevant information. Automated transmission of the information means that it is not necessary to re-enter the model data. This means that users benefit from enormous time savings and also helps eliminate possible sources of errors during modelling.

Added value of
LayPLAN TO RSTAB

  • Time saving thanks to automated 3D model transmission of Allround Scaffolding structures.
  • Transmission of all structurally relevant information according to the approvals (geometry, cross-sections, materials, frame types, eccentricities and non-linear connections).
  • Avoidance of possible sources of errors during modelling in the frame analysis program.
Target group and usage
  • Scaffolding erectors with a technical office – structural knowledge absolutely essential.
  • Engineering and planning offices – structural knowledge absolutely essential.
  • In both the offer and implementation phases.
  • Knowledge of AutoCAD and RSTAB required
System requirements
  • AutoCAD, AutoCAD Mechanical or AutoCAD Architecture – Versions 2017 – 2022
  • LayPLAN CAD
  • RSTAB 8 from Dlubal – RSTAB 9 is not supported
  • RS-COM Interface from Dlubal
