Shoring TG 60
The benefits
for you
Safe.
Allround Shoring TG 60 not only offers exceptional load-bearing capacity but is also safer during assembly and dismantling. If the towers are assembled upright, O-steel decks are placed in position. The frames, ledgers and diagonal braces of the next tower section are then fitted.
Flexibly.
Different Allround ledgers and diagonal braces can be used to flexibly adapt the shoring tower to geometrical and load requirements
Sustainable.

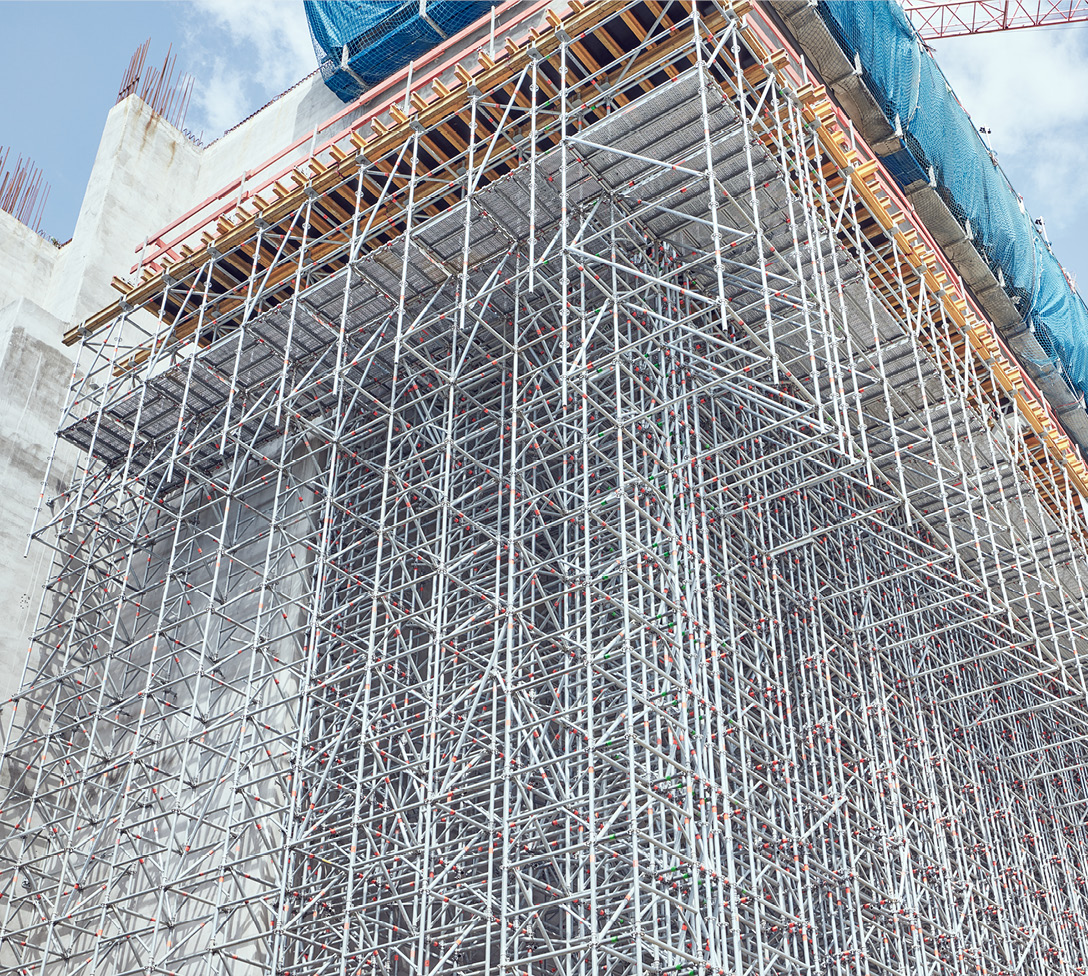

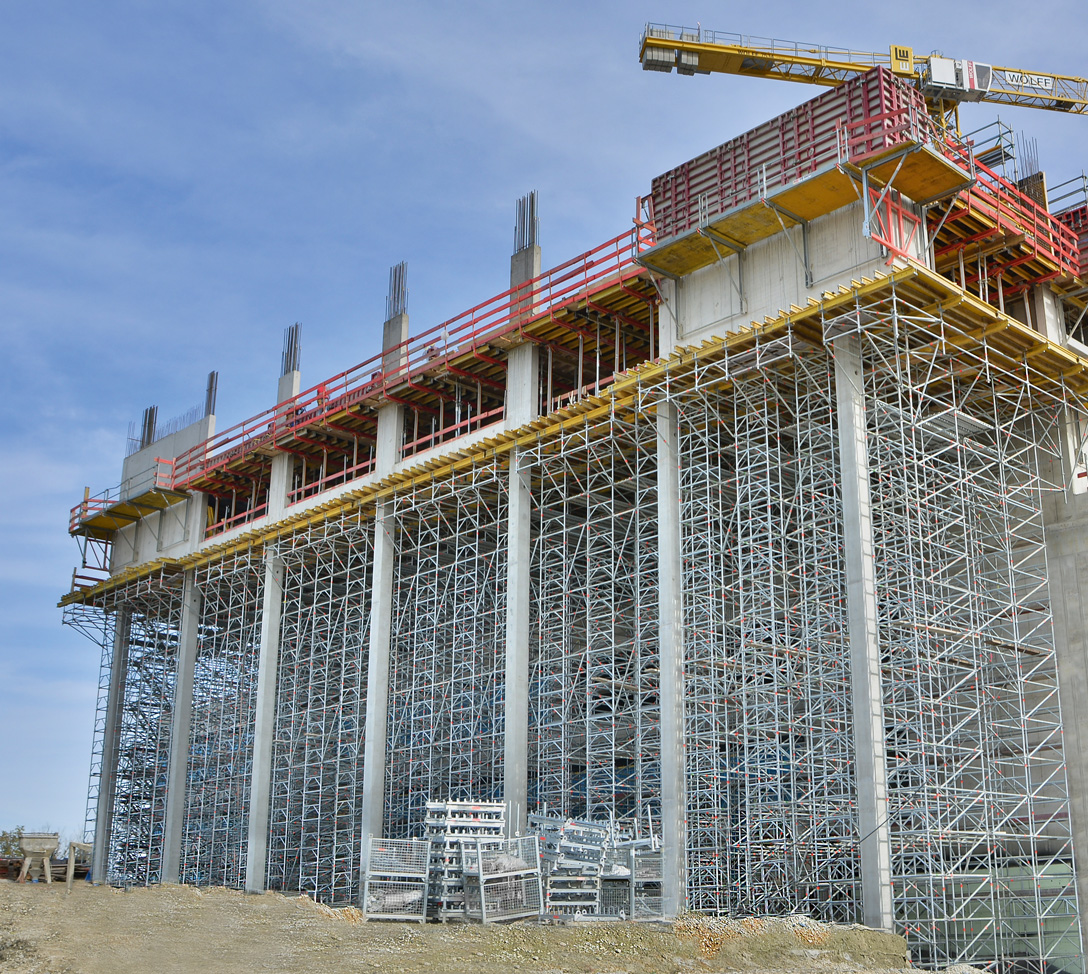

Shoring Towers TG 60 are connected together and braced using Allround ledgers and diagonal braces in the Layher system dimensions to create birdcage scaffolding. This results in extremely strong scaffolding structures – even for very large support heights.
Allround Shoring Frame TG 60
The Allround Shoring Frames TG 60 have been developed based on Allround Scaffolding.
With just three additional parts, they can be used to create higher and more stable shoring structures even more quickly.

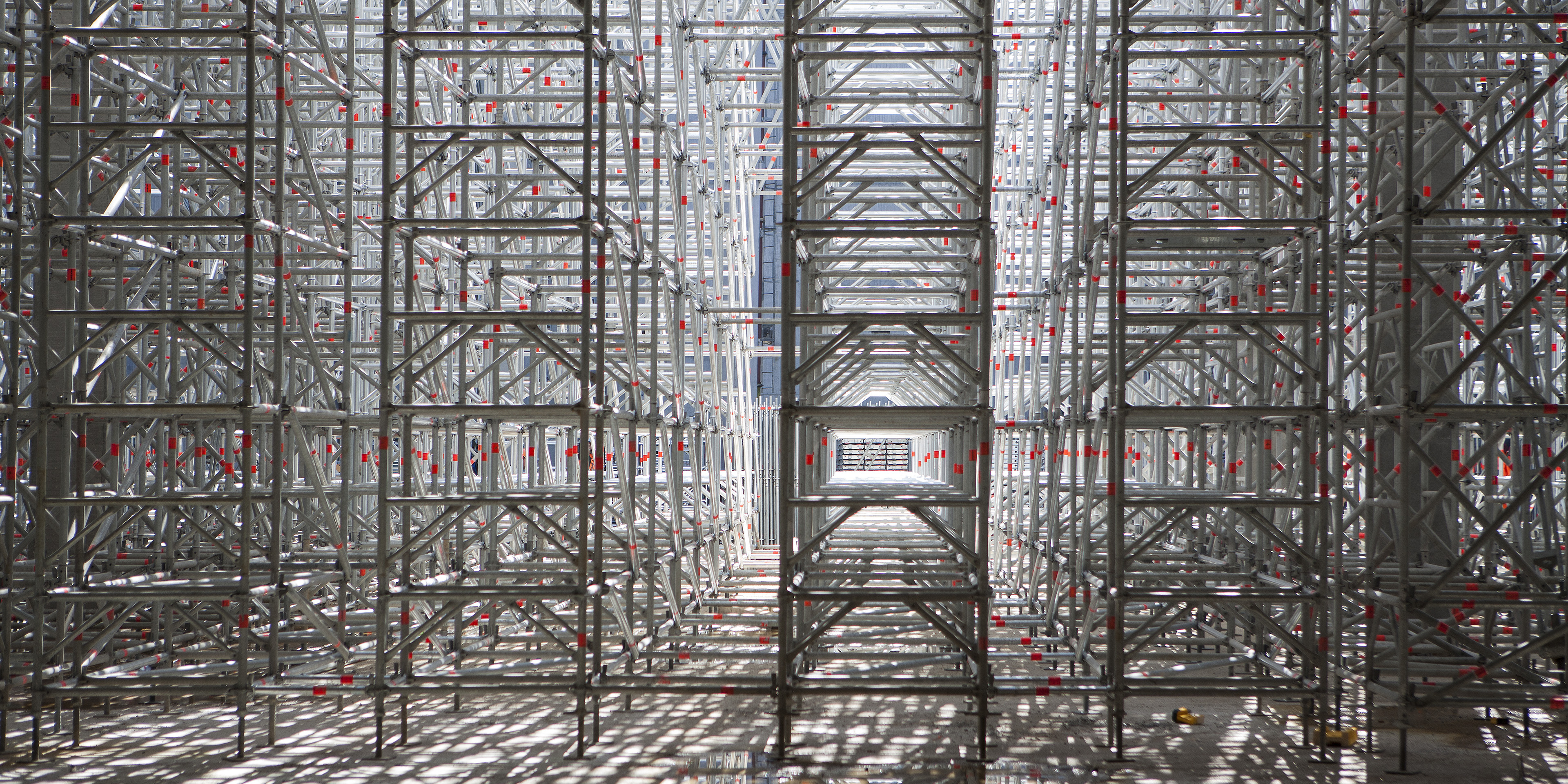

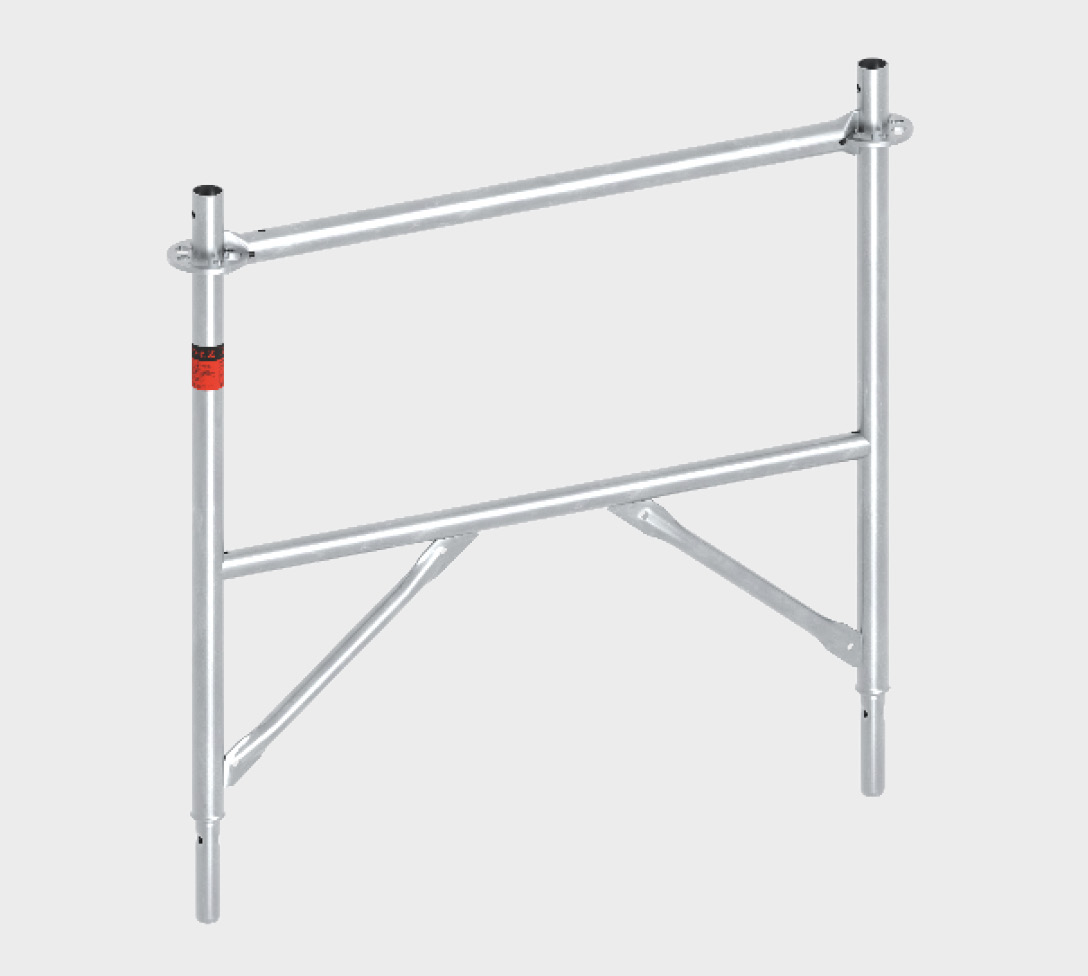

Allround Shoring Frames TG 60 are manufactured from high-tensile steel scaffolding tube and stiffened using two struts. Each standard can be loaded with up to six tonnes.The welded-in ledgers are crimped at the ends to provide seven connecting points at the Allround rosette. The Shoring Frames TG 60 replace the standards, ledgers and diagonal braces, meaning that assembly and dismantling can be performed 30% faster and with fewer components.
Intelligent – Thanks to variable by lenghts

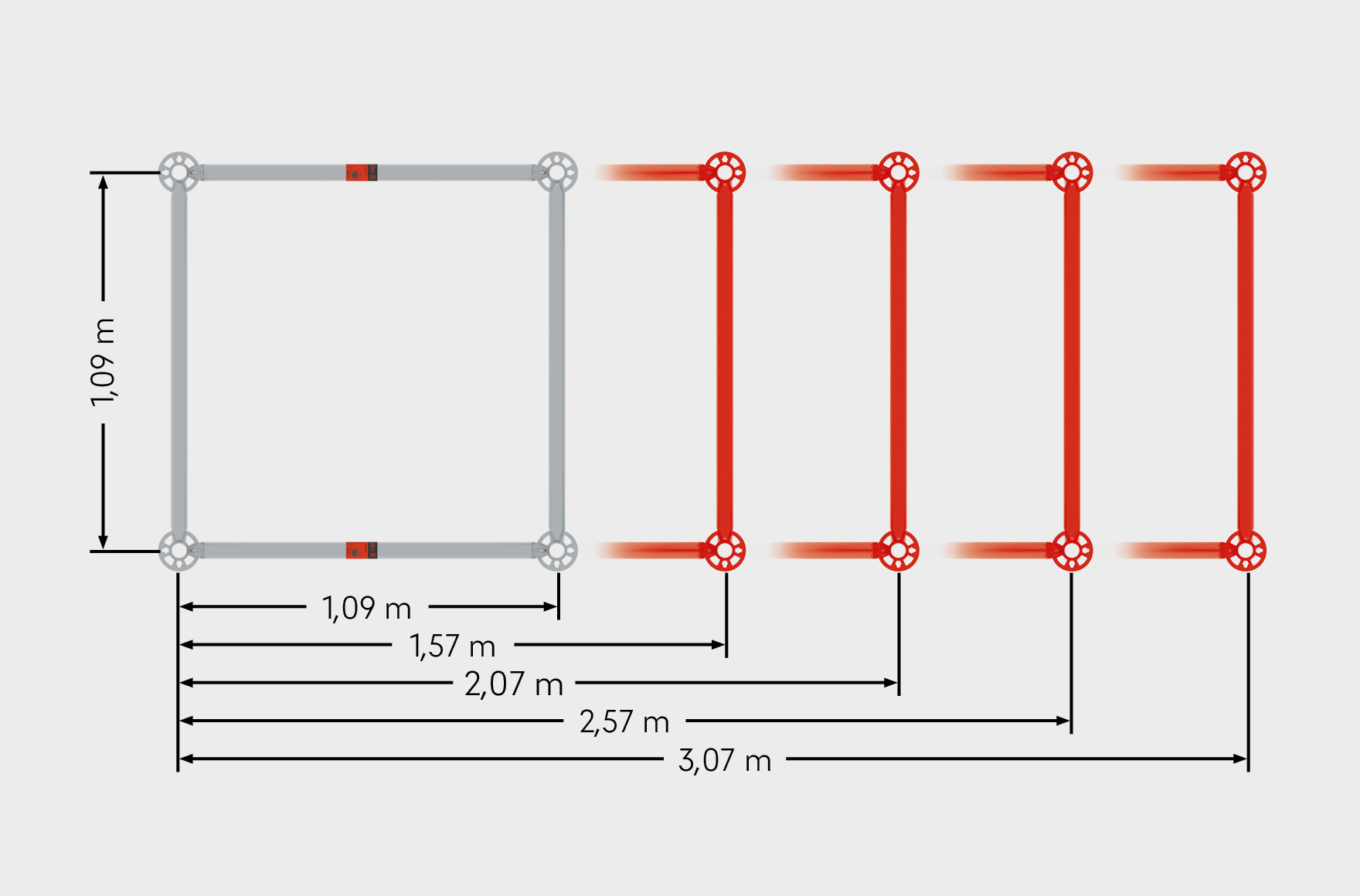

The Allround Shoring Tower TG 60 can be flexibly adapted to the standard dimension of the formwork supports and the load requirements. To do so, all that is needed is to select Allround ledgers and diagonal braces of the appropriate lengths. The main components – the Allround Shoring Frames TG 60 – remain the same.
The versatility of the system means that even better use can be made of the high load-bearing capacity. This saves material, time and money.
The towers can be repositioned quickly and efficiently using easily attached castors instead of having to be dismantled and reassembled. In this way, it is even possible to move entire tower groups in a single operation.
System-integrated advancing side protection
Allround Shoring TG 60 not only offers exceptional load-bearing capacity but is also safer during assembly and dismantling.
If the towers are assembled upright, O-steel decks are placed in position. The frames, ledgers and diagonal braces of the next tower section are then fitted.

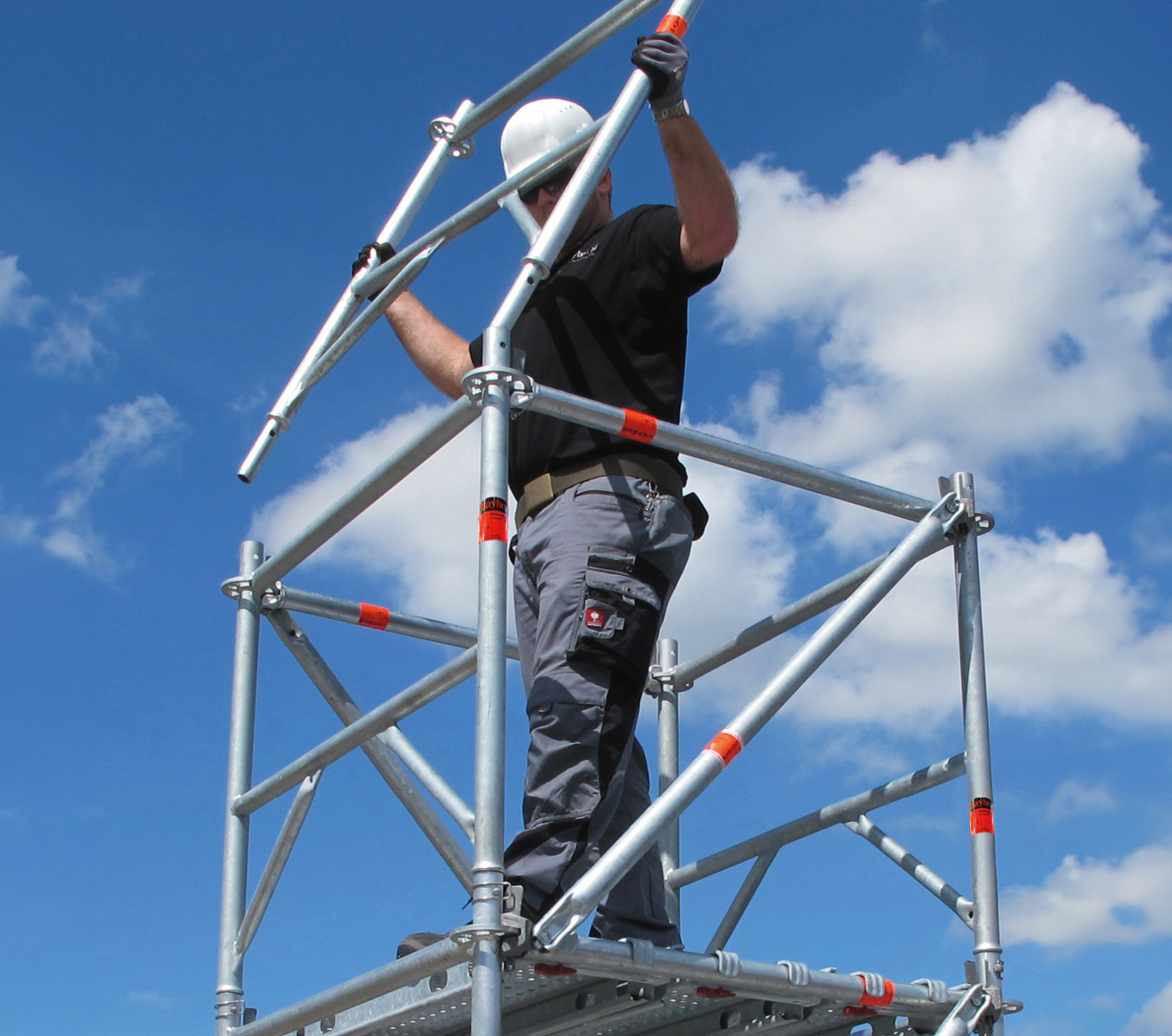

The scaffolding decks are then simply positioned 1m higher, and it is possible to ascend to the secured next level directly via the Allround Shoring Frame TG 60.
Safer assembly
using a crane

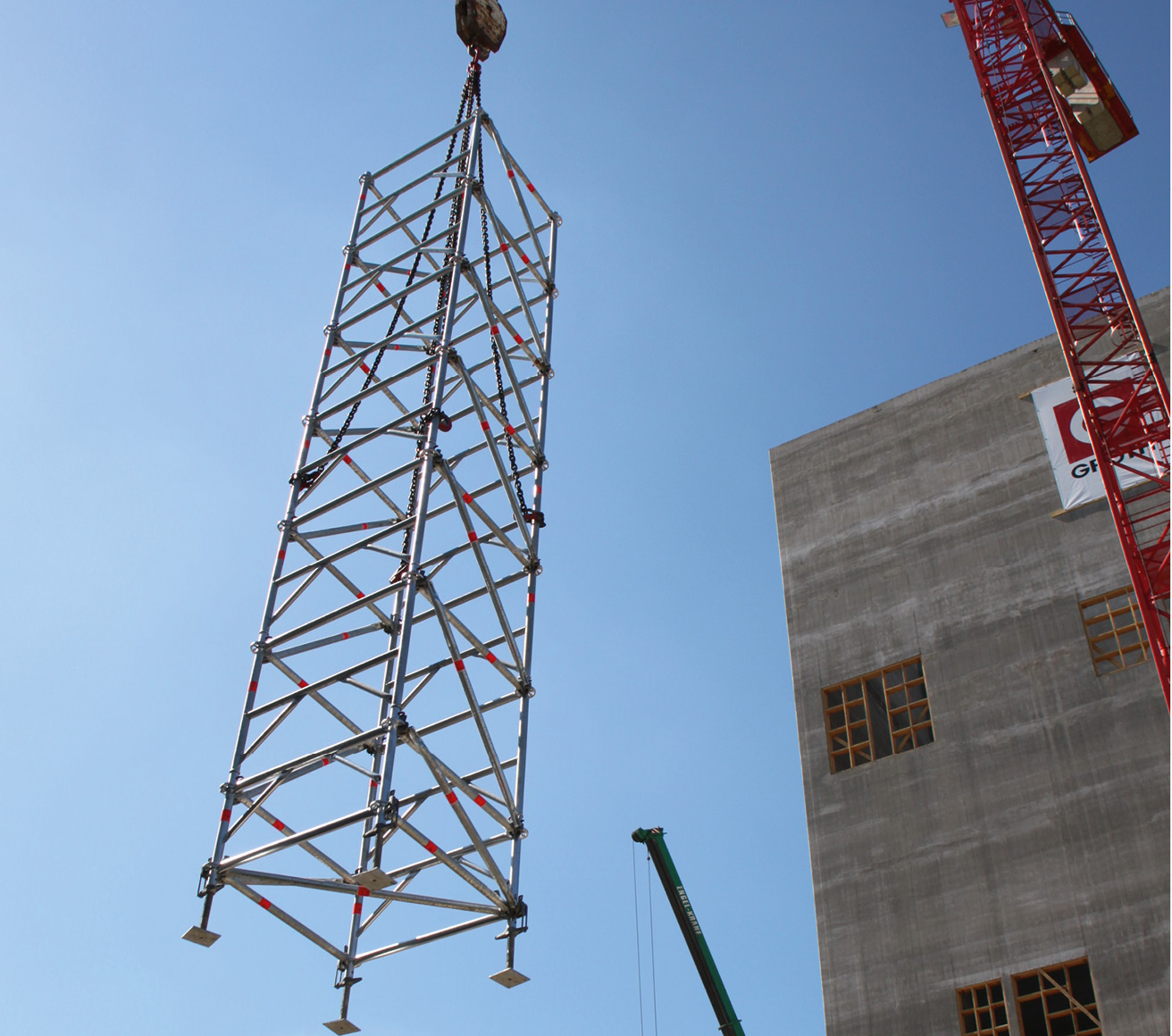

The Shoring Tower TG 60 can be assembled horizontally at ground level before being moved into position by crane, or it can be erected vertically.
It can be assembled either directly at the place of use or moved into position using easily mountable castors.
The individual shoring frames are secured using hinged pins in order to transmit the tensile forces.
Approval
- Approval Z-8.22-64 regulates the manufacture and marking of Shoring Frames TG 60.

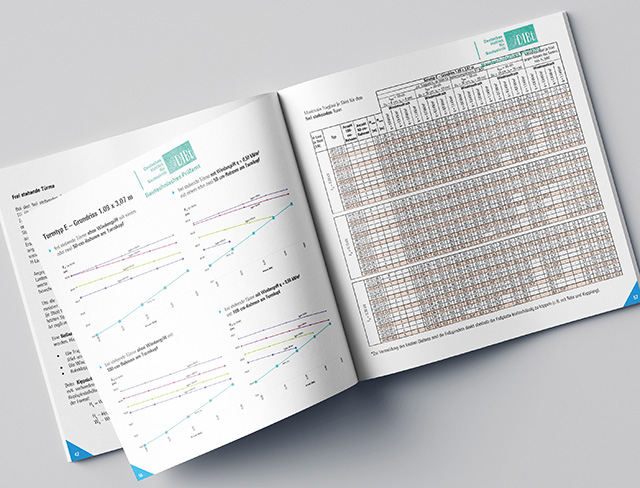

- The TP-11-017 type test contains calculations for tower variants with different ground plans and support heights.
Advice on applications and sites
Our well-qualified Layher applications engineers devote themselves to your specific requirements, finding solutions for you that deliver the right results at the right price. You also have access to extensive technical documentation, consisting of material requirements tables, assembly drawings, verified structural analyses as per DIN EN 12812, and dimensioning aids for formwork supports.
Allround Scaffolding – Basis for Shoring TG 60
The Shoring Frames TG 60 were developed on the basis of Allround Scaffolding.
With just three additional parts, they can be used to create higher and more stable shoring structures even more quickly.
The Shoring Frames TG 60 are available in the sizes 1.00 x 1.09 m, 0.50 x 1.09 m and 0.71 x 1.09 m.
Success
Stories
LayPLAN
SUITE

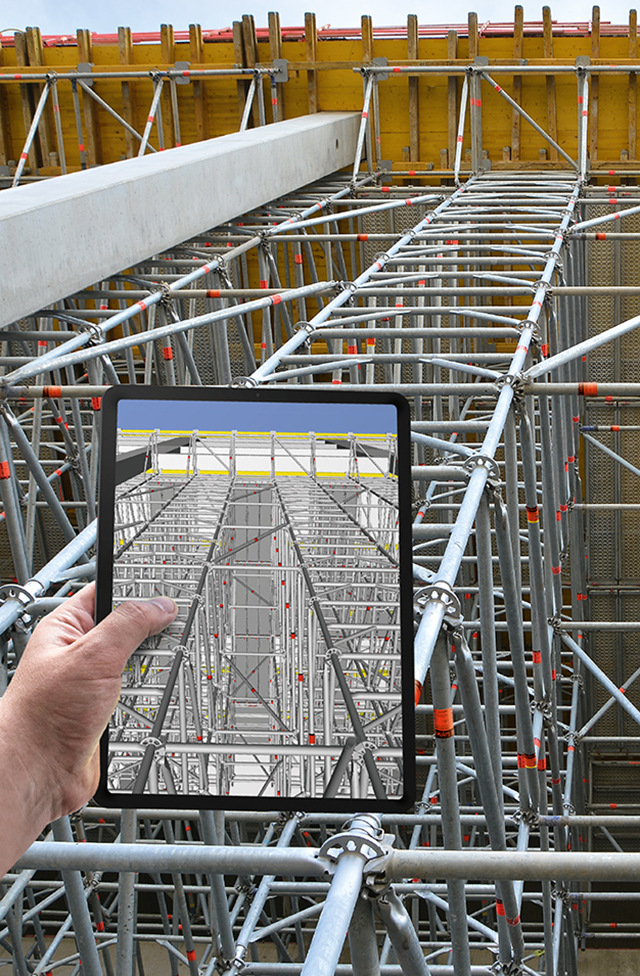

With the software packages LayPLAN CLASSIC and LaypLAN CAD, scaffolding structures from simple and small facade scaffolding up to complex industrial scaffolds or protection roofs and stands can be planned.
